Product Category:
Tile interface
Product Code:
ERK-TRH-T12
BOM:
6# tile roof hook base part(SUS 304)------1
12# tile roof hook support part(SUS 304)------1
M8x25 the carriage bolt(SUS 304)------1
M8 hexagon nuts with flange(SUS 304)------1
M10x30 the carriage bolt(SUS 304)------1
M10 hexagon nuts with flange(SUS 304)------1
ERK rail clamp(Al6005-T5)------1
SC6.3x80 hex head wood screw(20#)------3

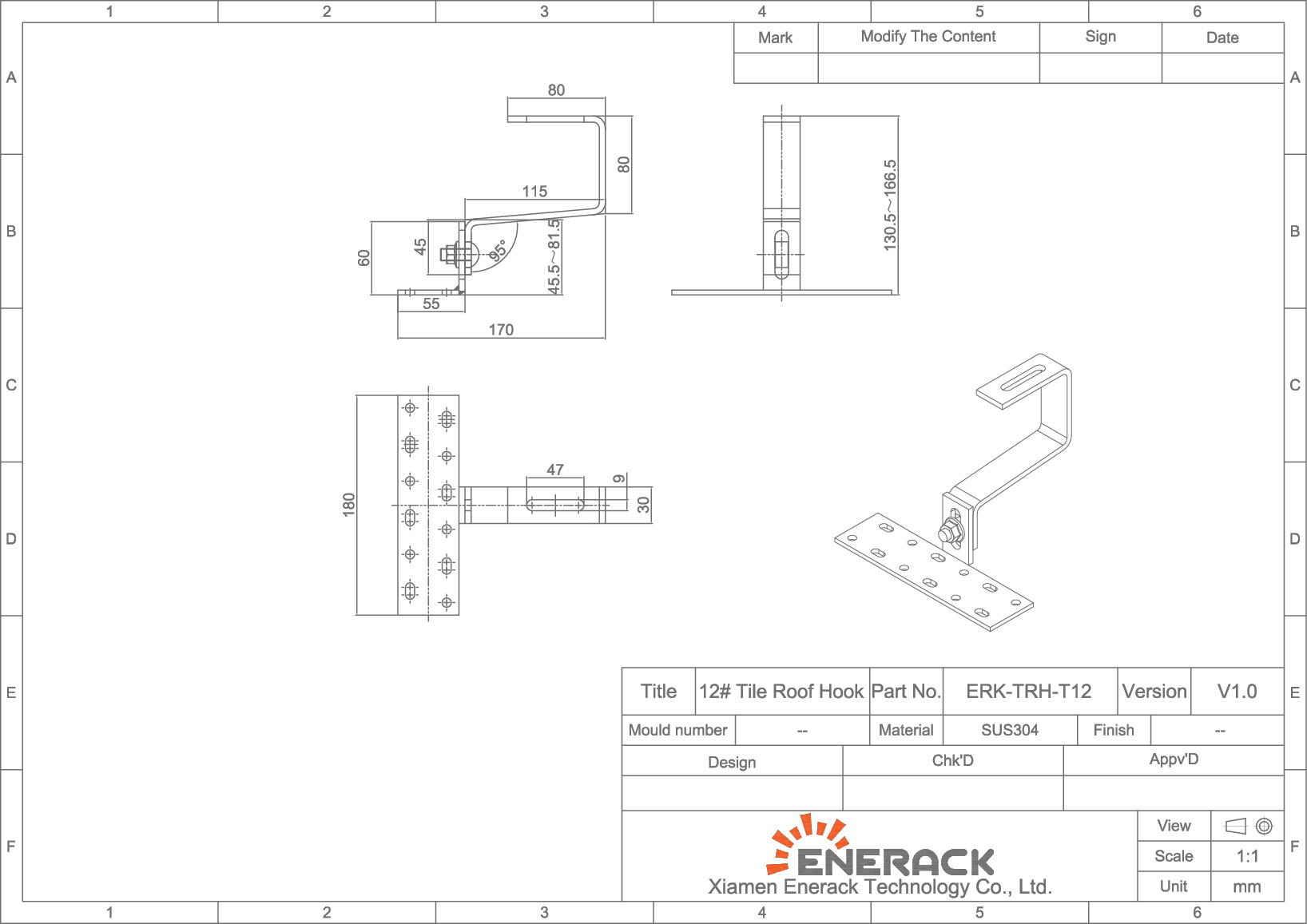

Detail:
