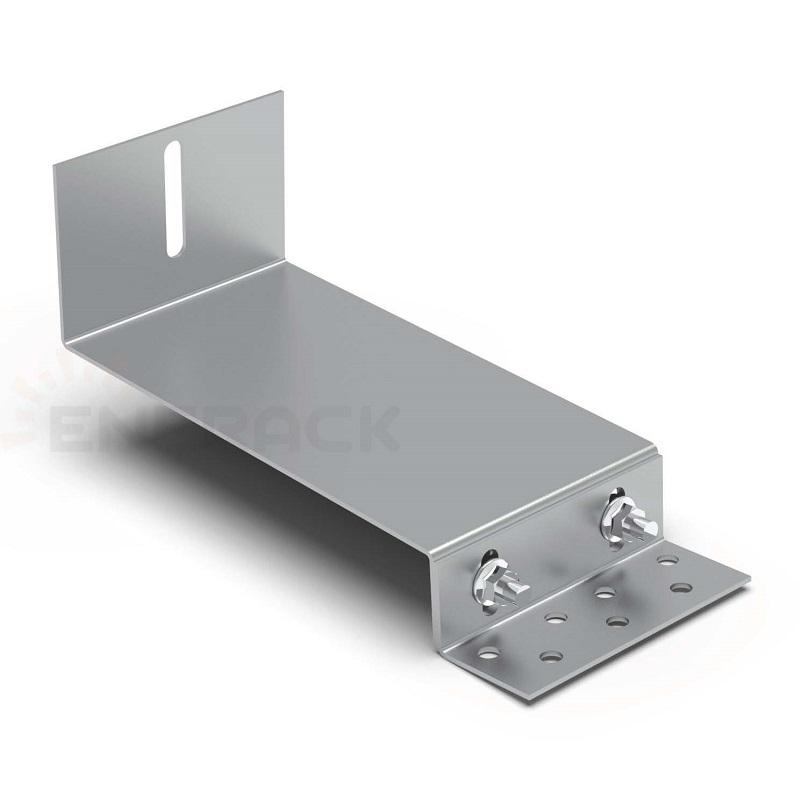

Adjustable tile roof hook ERK-TRH-T26

Product Category:
Tile interface

Product Code:
ERK-TRH-T26

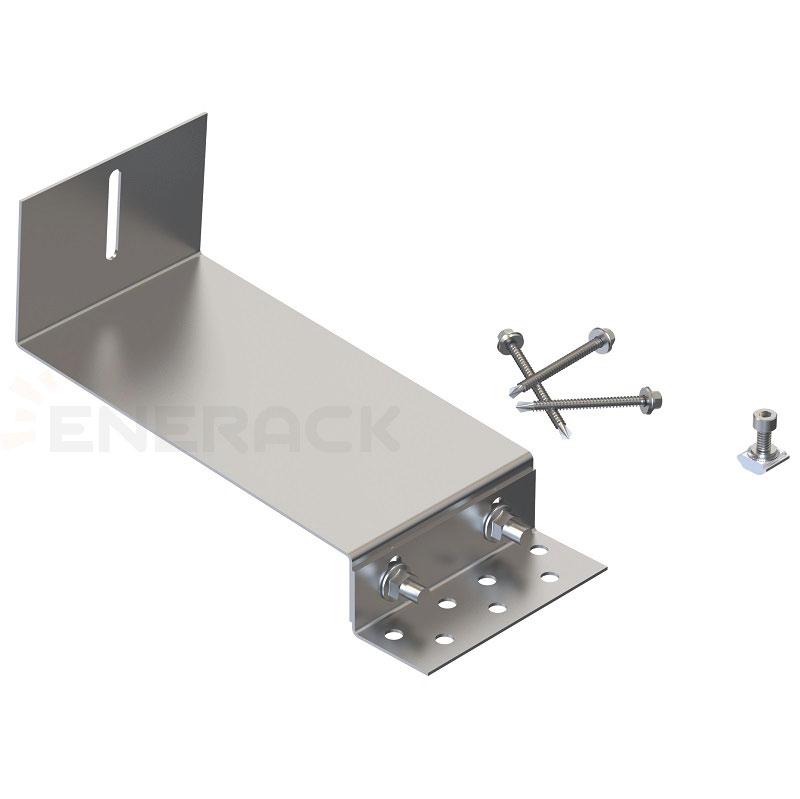

BOM:

26# Tile roof hook base part(SUS 304)------1

26# Tile roof hook support part(SUS 304)------1

M10x30 the carriage bolt(SUS 304)------2

M10 hexagon nuts with flange(SUS 304)------2

M8x20 hex socket head bolt(SUS 304)------1

M8 spring washer(SUS 304)------1

M8 lock washer(SUS 304)------1

ERK nuts(Al6005-T5)------1

SC6.3x80 hex head wood screw(20#)------3

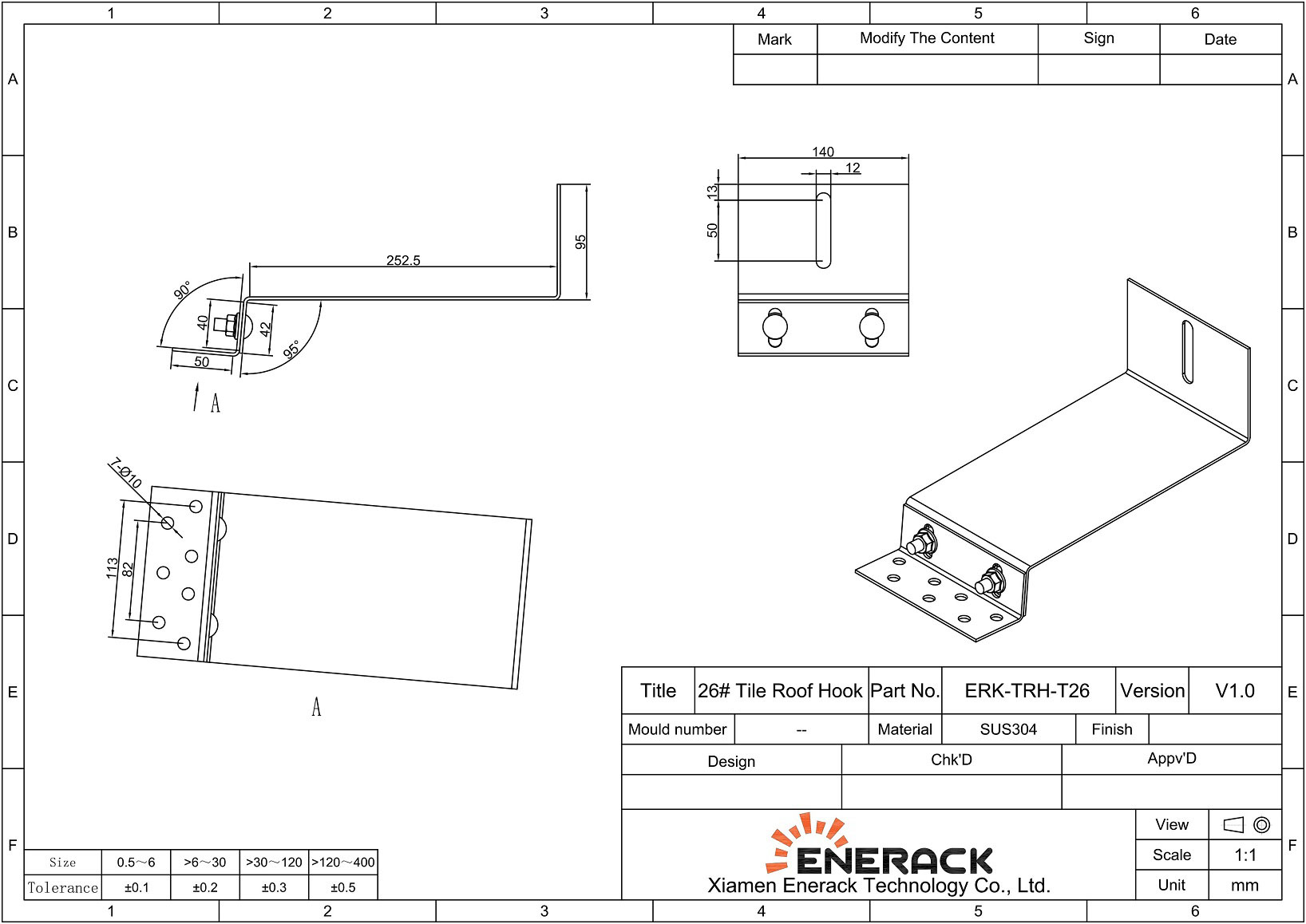

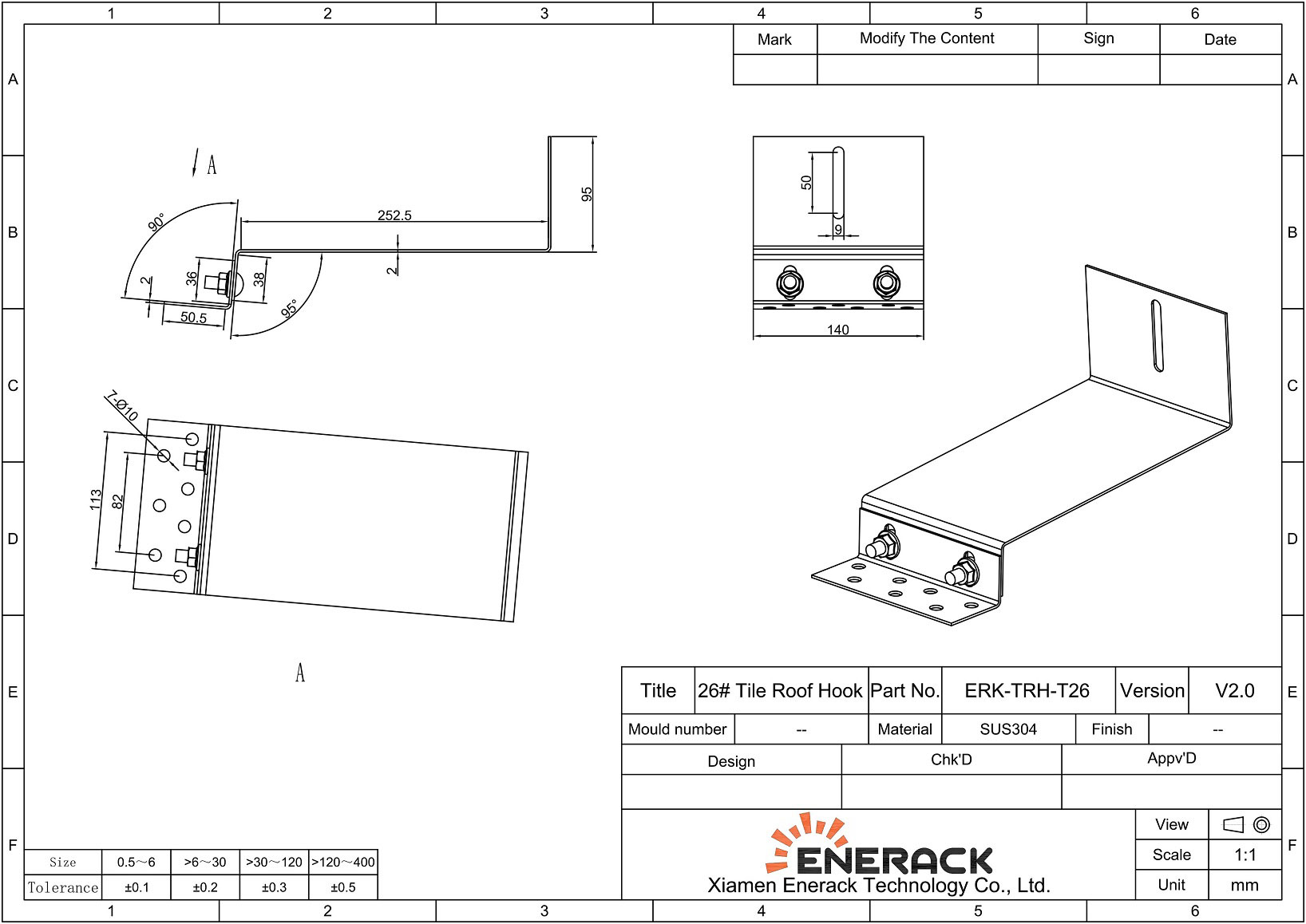

Drawings:
