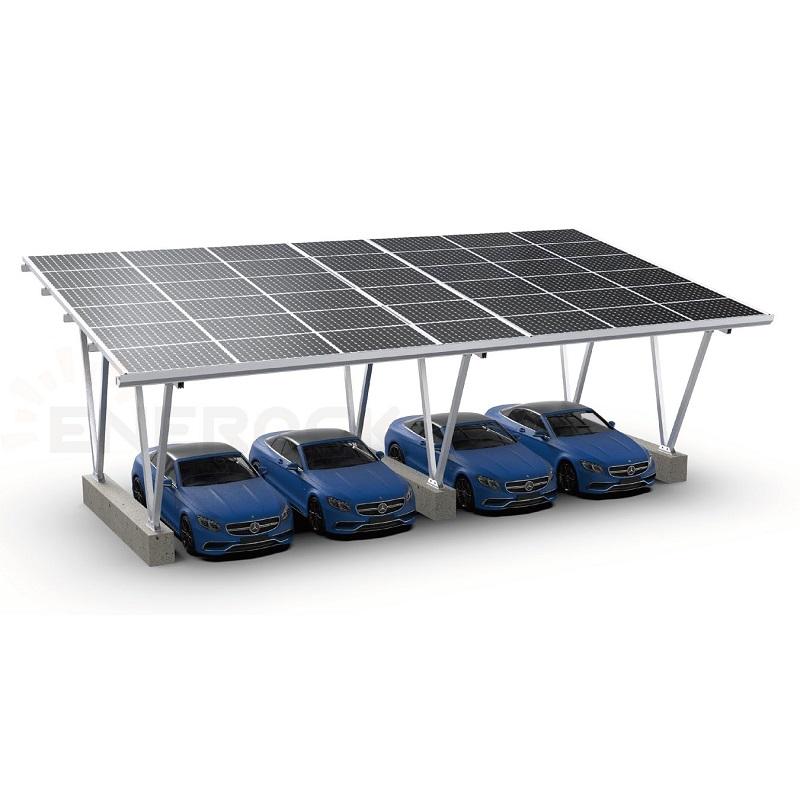

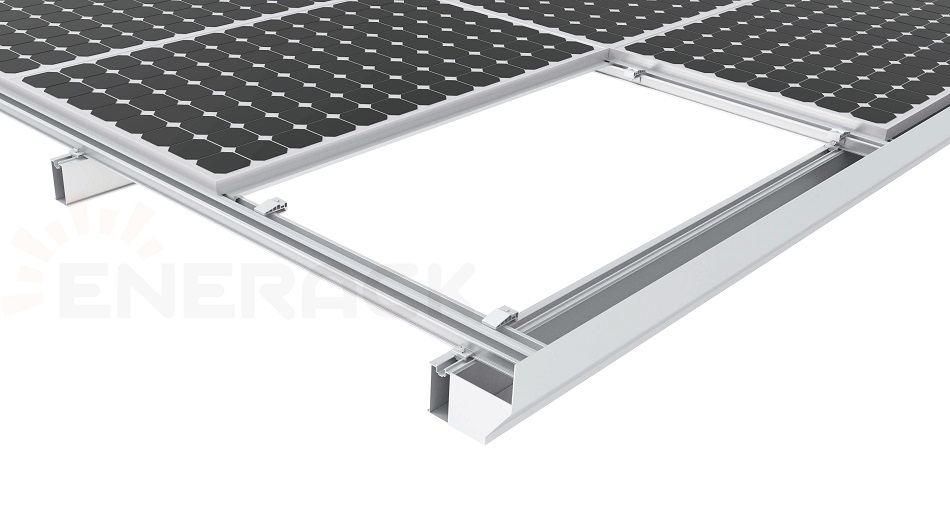

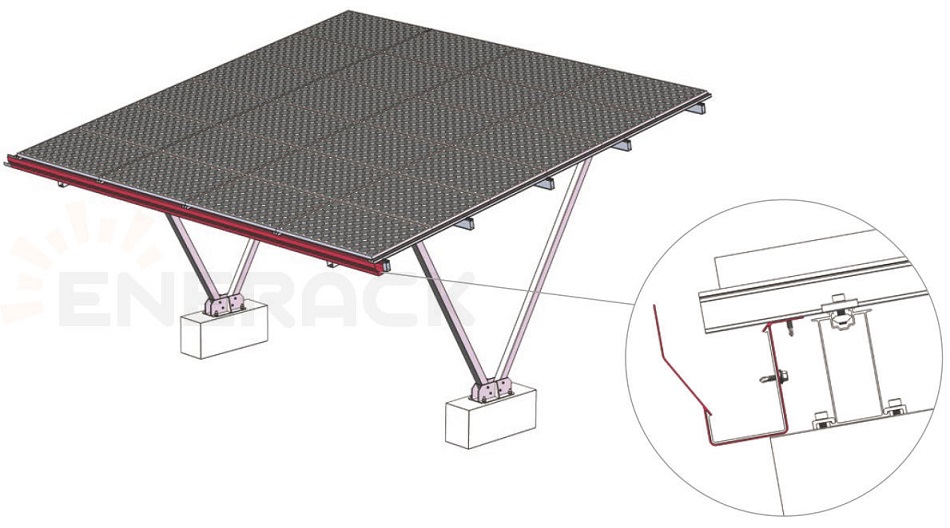

All-aluminum waterproof carport solar mounting system

All-aluminum waterproof carport solar mounting system highly pre-assembled main structure for solar modules landscape or portrait 5°/ 8°/10°inclination or customized and engineered to project maximal span up to 5.4m cover up to 2 parking spaces per span.

Technical features:

Product name: Waterproof standard carport system;

Application: Solar parking structure;

Inclination: 5°, 8°,10° or customized;

Material: AL6005-T5, SUS304;

Finish: AL 6005-T5 Anodized;

Module orientation: Landscape or Portrait.

Advantages:

1. Good heat absorption.

2. Good waterproof and rain protection, convenient installation, and flexibility.

3. Make full use of the original site to provide green energy.

4. Suitable for frame panel:Poly modules, double glass module etc.

Appliaction:

Installation place: home, company, shopping mall, large parking lot.

Parking category: battery car/bicycle, car, bus.

Number of parking Spaces: 1 parking space, 2 parking Spaces, 3 parking Spaces, multiple parking Spaces (large span).

By row: single row parking space, double row parking space.

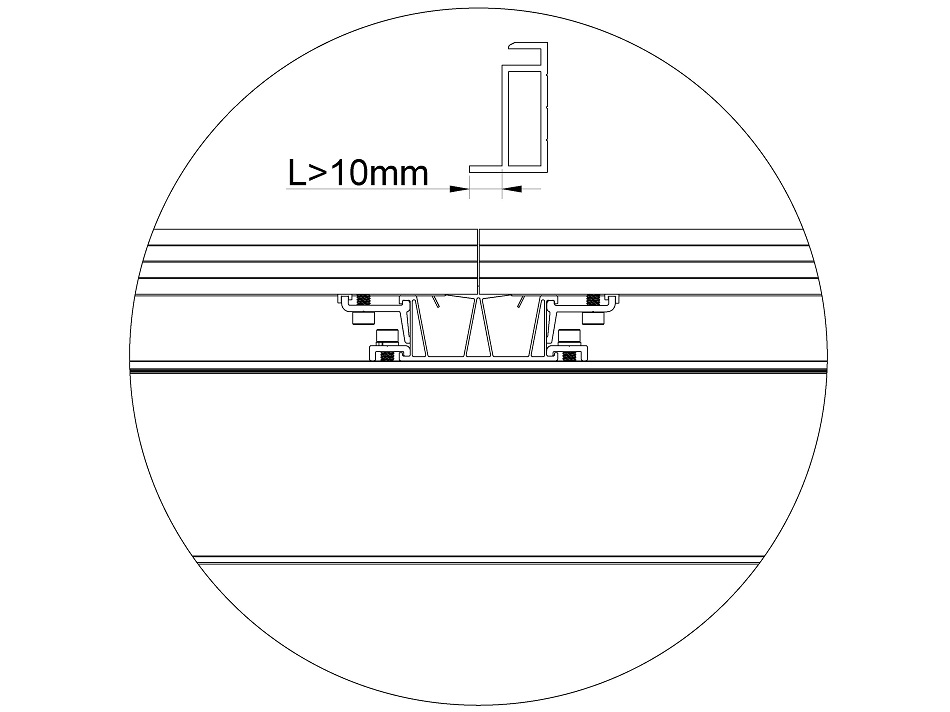

Requirement for the clamp of the waterproof carport  frame need L＞10mm.

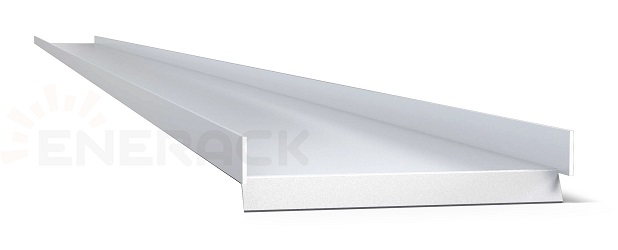

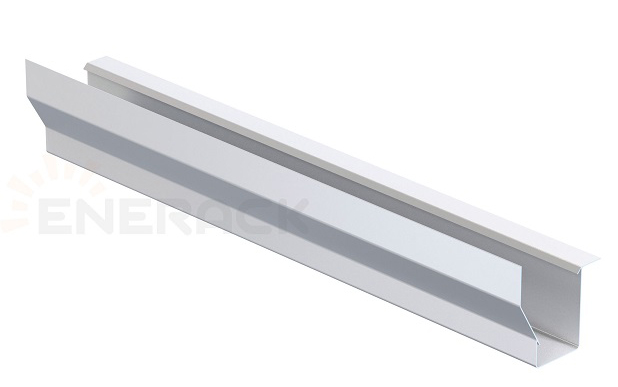

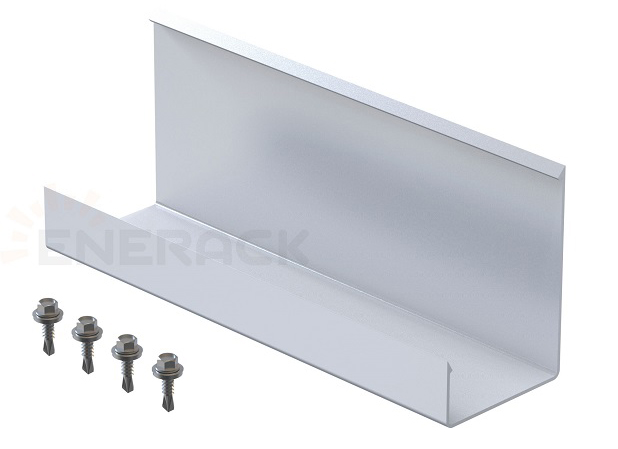

Waterproof carport gutter (ERK-CGR)

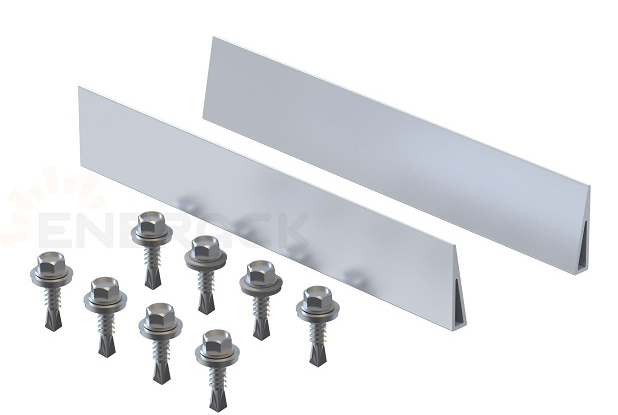

Waterproof carport gutter connector (ERK-SFR-07)

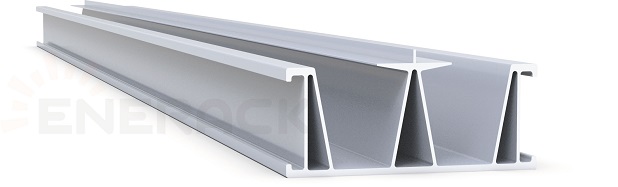

Waterproof carport water channel (ERK-HWT)

 Waterproof carport water guide rail (ERK-RWT)

Waterproof carport water guide rail connector (ERK-RWC)

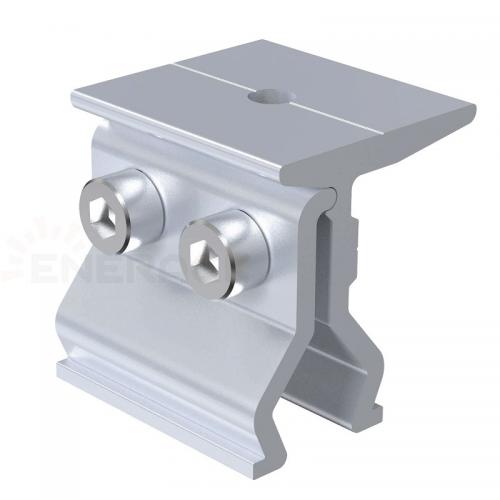

Solar panel clamp (ERK-PVC)

Carport base (ERK-CPS-02)

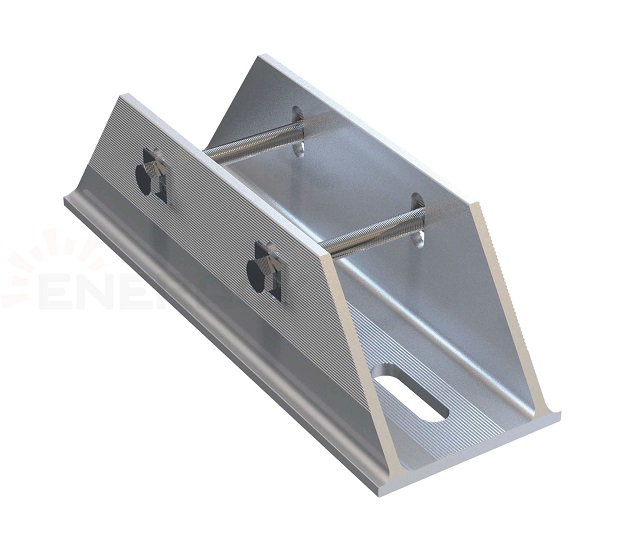

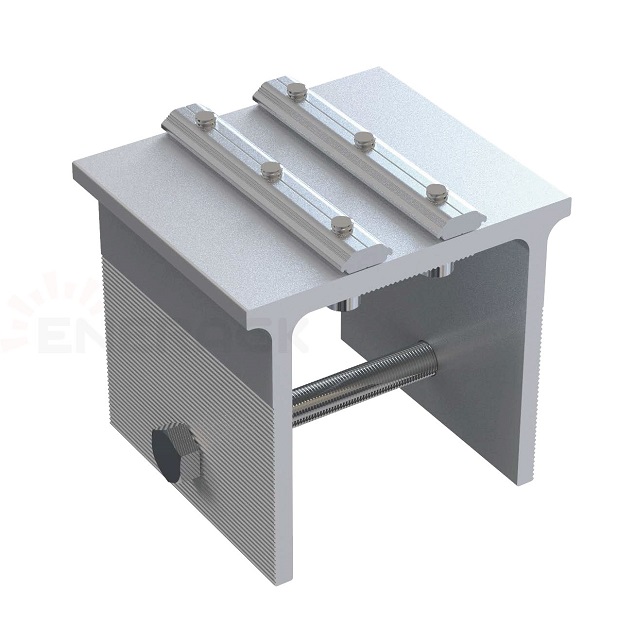

Carport support parts (ERK-CPH-01)

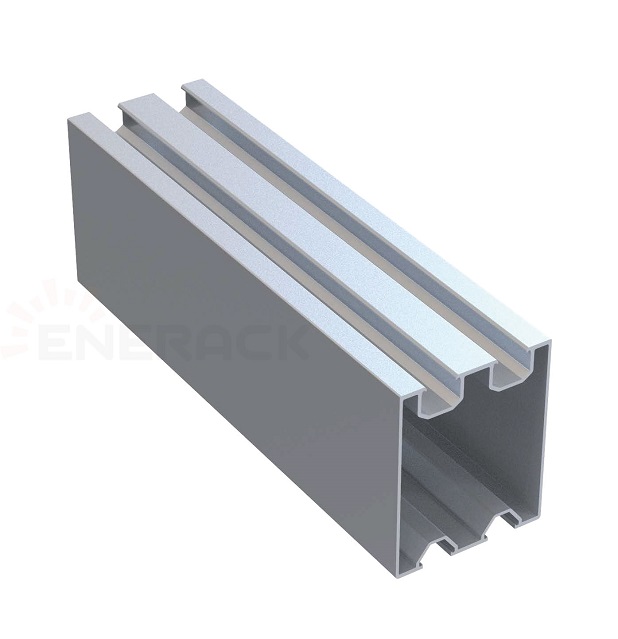

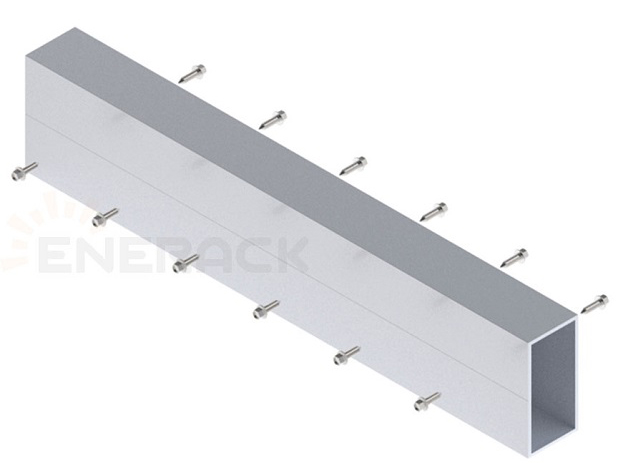

Carport beam (ERK-B110)

Carport beam connector (ERK-SFR-B110)

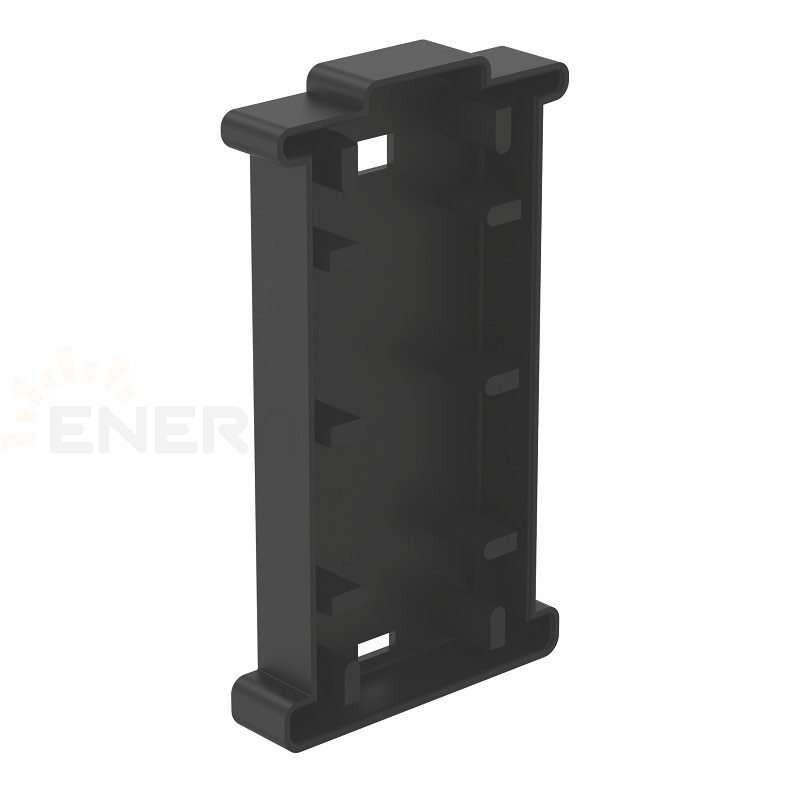

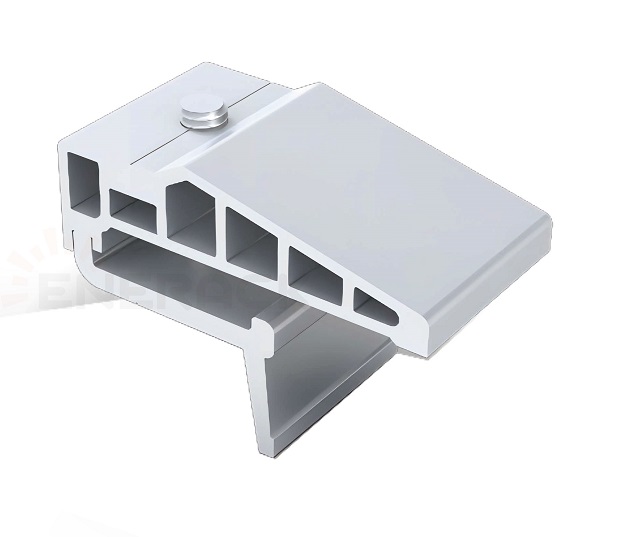

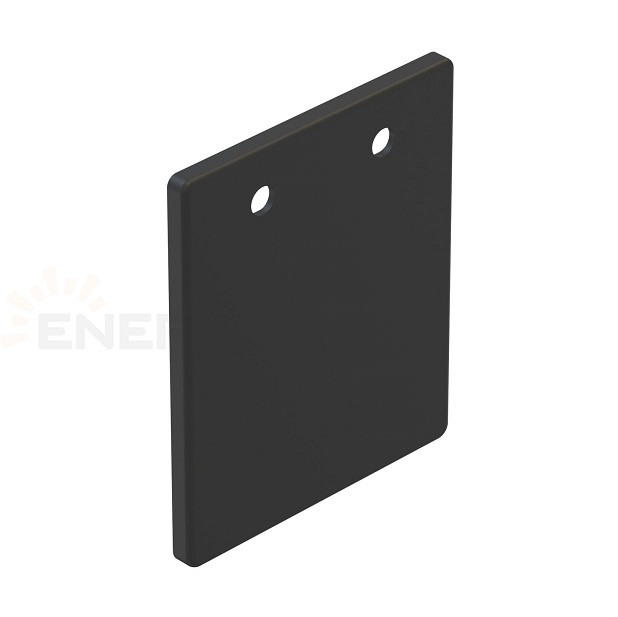

Carport beam end cover cap (ERK-BEC)

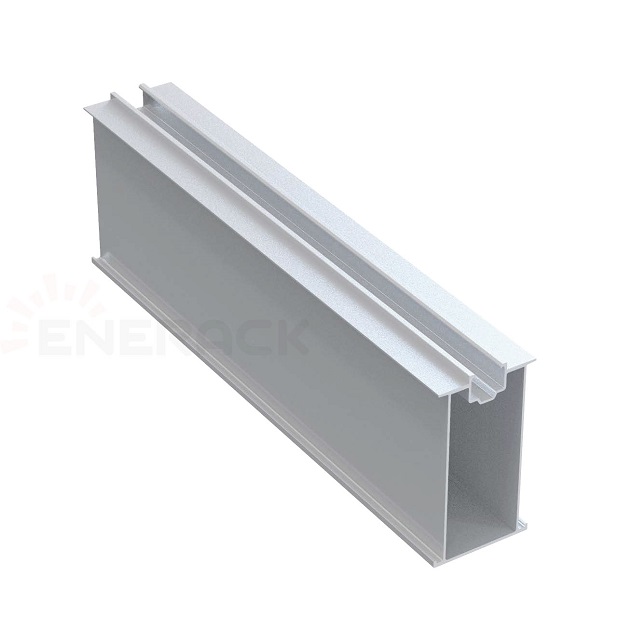

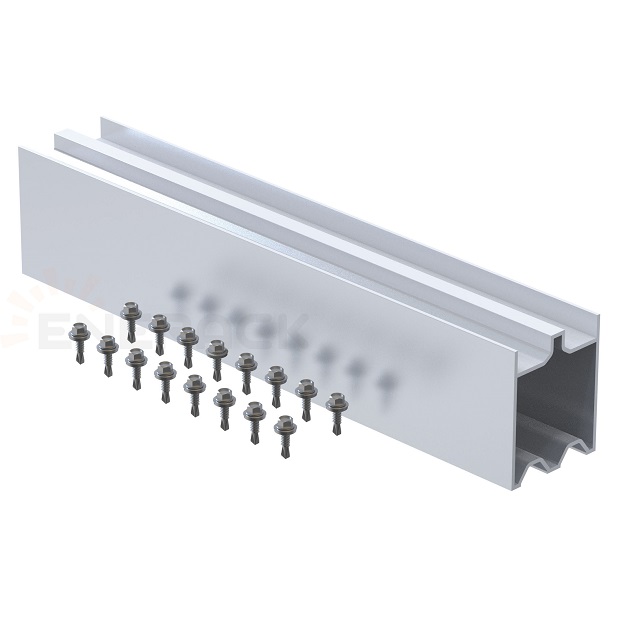

Carport 125mm rail (ERK-R125)

Carport 125mm rail connector (ERK-SFR-R125)

Carport 125mm rail end cover cap (ERK-CEC)

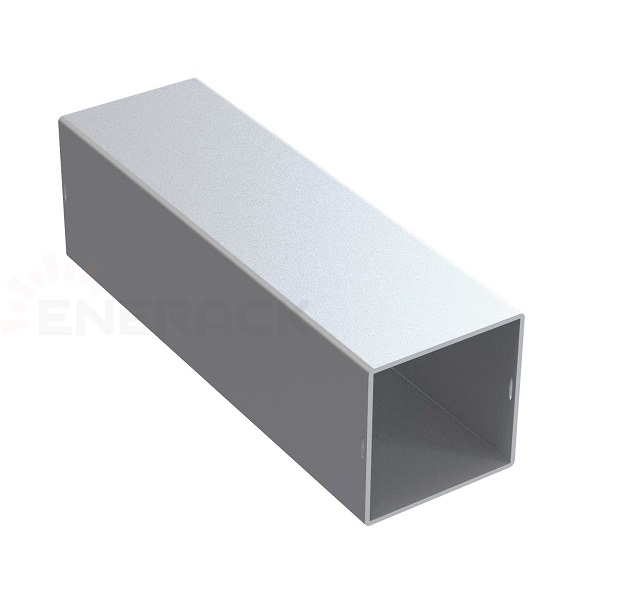

100×100mm Aluminum square tube (ERK-CPS)
