All-aluminum carport solar mounting system

Our carport solar mounting system are sold to Africa, the Middle East, Southeast Asia, Europe and the South America. The idle area of the parking shed is used to build a photovoltaic parking shed, and the combination of photovoltaic power generation and carport is the simplest one in the combination of photovoltaic and building. It can not only achieve all the functions of the traditional carport, but also bring electricity generation benefits to the owner. It is stored in the battery by the charging device or directly supplied to the electric vehicle to charge for self-use. You can even use extra power to get online. Using aluminum alloy structure bracket, simple installation, generous, fashionable, beautiful.

carport solar mounting system

Highly pre-assembled main structure for solar modules landscape or portrait 5°/ 8°/10°inclination or customized and engineered to project maximal span up to 5.4m cover up to 2 parking spaces per span.

Technical features:

Product name: Standard carport system;

Application: Solar parking structure;

Inclination: 5°, 8°,10° or customized;

Material: AL6005-T5, SUS304;

Finish: AL 6005-T5 Anodized;

Module orientation: Landscape or Portrait.


1. Good heat absorption.

2. Low cost, convenient installation, and flexibility.

3. Make full use of the original site to provide green energy.

4. Suitable for various types of solar panels:Poly modules, double glass module,thin film modules etc.

Installation place: home, company, shopping mall, large parking lot.

Parking category: battery car/bicycle, car, bus.

Number of parking Spaces: 1 parking space, 2 parking Spaces, 3 parking Spaces, multiple parking Spaces (large span).

By row: single row parking space, double row parking space.

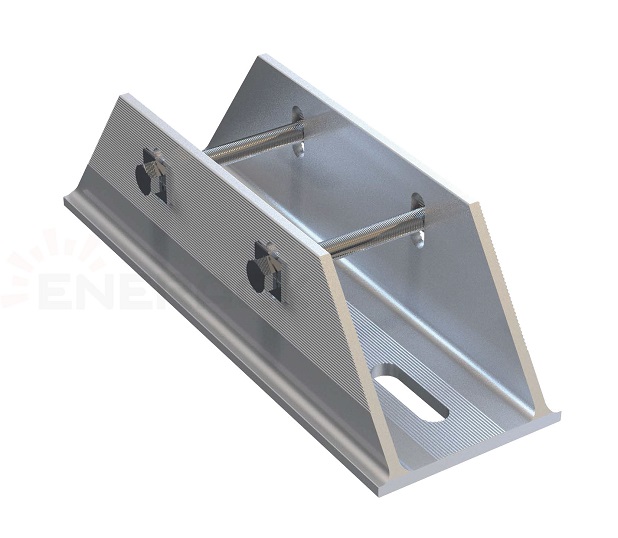

Carport base (ERK-CPS-02)

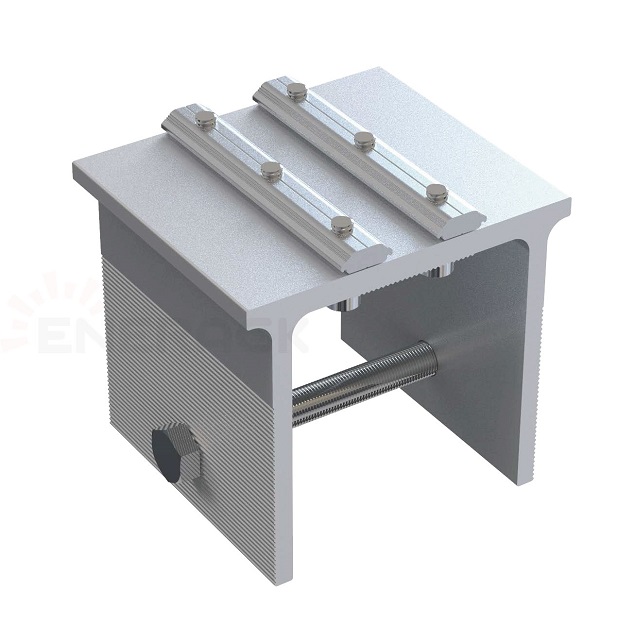

Carport support parts (ERK-CPH-01)

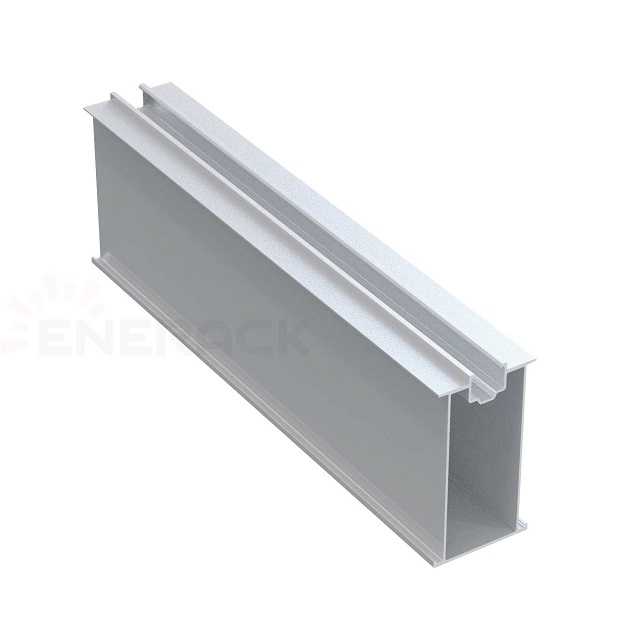

Carport beam (ERK-B110)

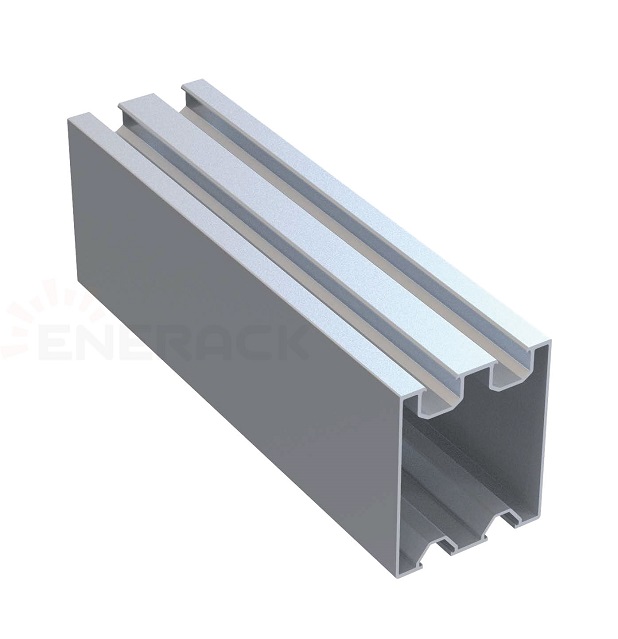

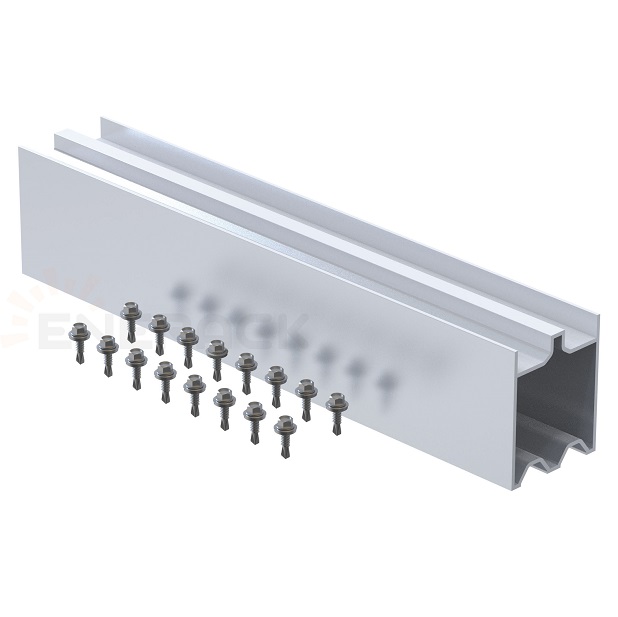

Carport 125mm rail (ERK-R125)

rail end cover cap

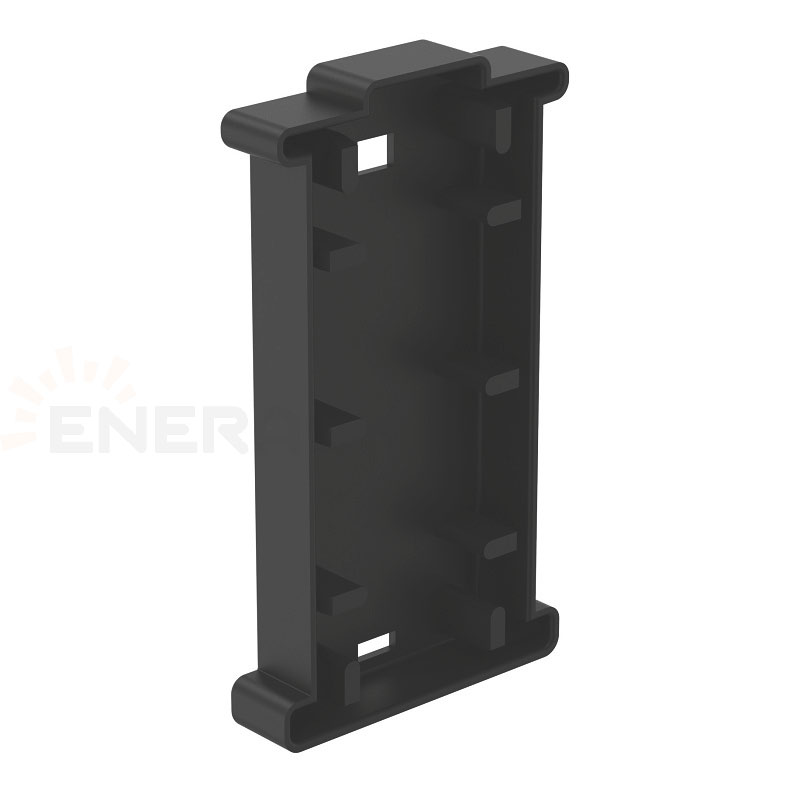

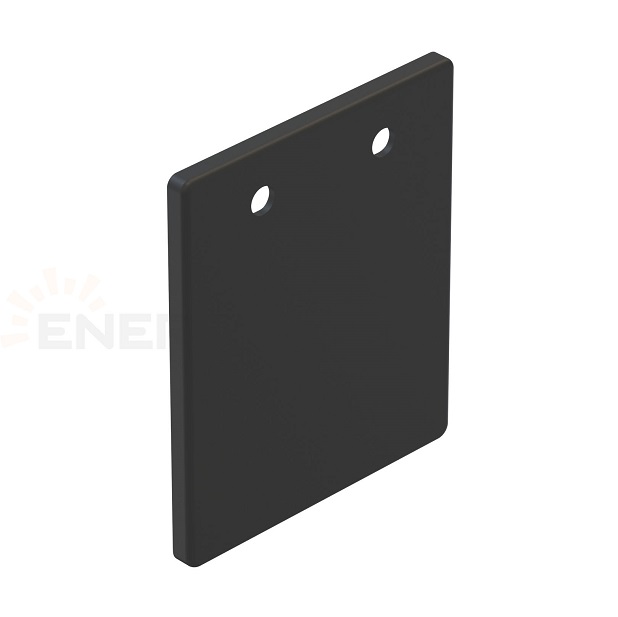

Carport 125mm rail end cover cap (ERK-CEC)

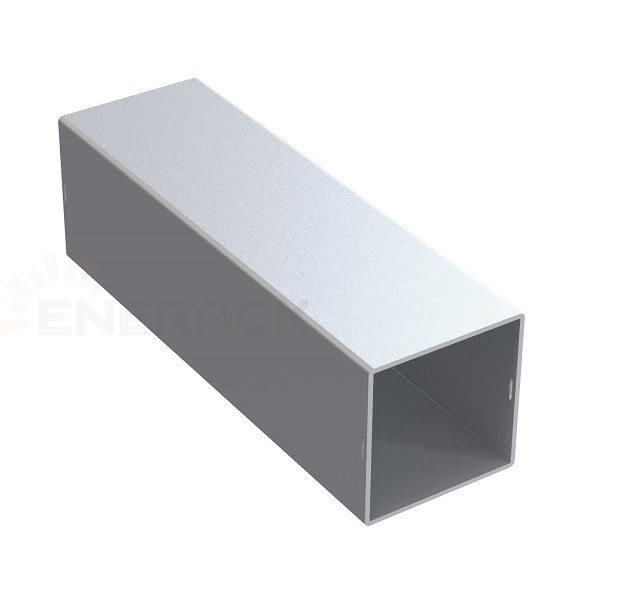

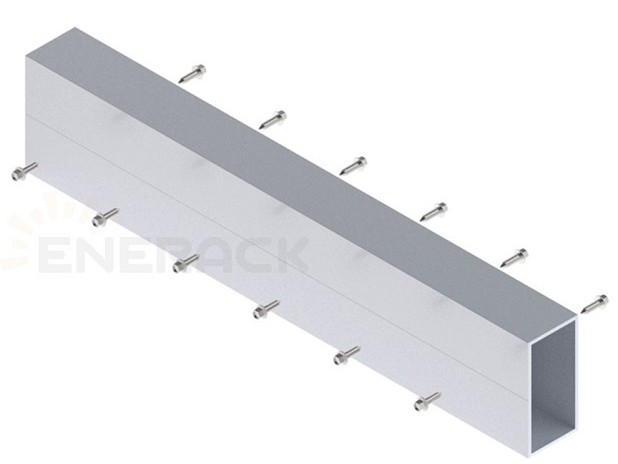

100×100mm Aluminum square tube (ERK-CPS)

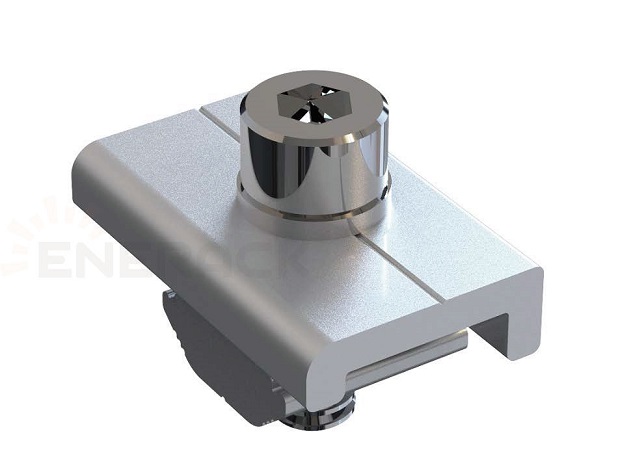

Rail clamp (ERK-GRC)

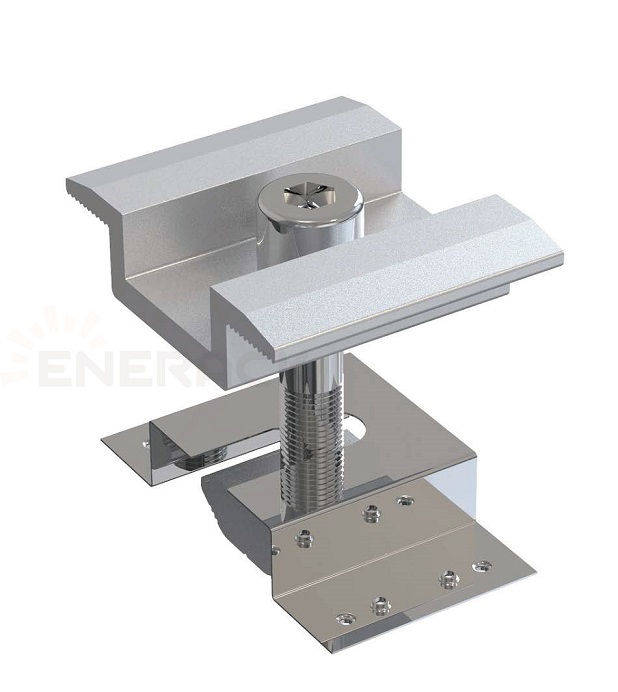

Mid clamp (ERK-GIC)

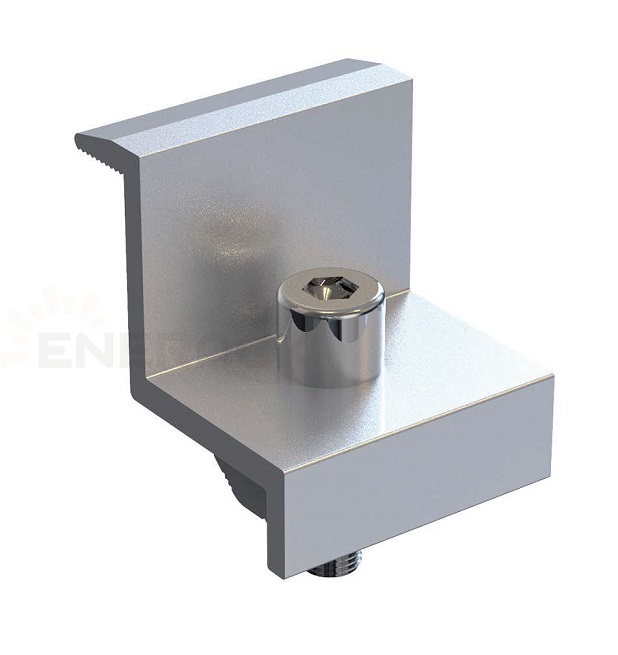

End clamp (ERK-GEC)
